250W Cnc Vision Measuring System Self - Developed Sophisticated Embedded Module Control System
Features:
1. The seft-developed Measuring software has meet various requirements of customers.
2. Auto focusing, auto edge finding, powerful programming, and auto measuring.
3. Adopts subpixel subdivision technique to improve resolving power of boundary.
4. Installed with joystick, which is also able to be programmed by software.
5. SPC data processing system and large quantities of jig measurement.
6. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.
Specifications:
| Model |
VMS-2515H |
VMS-3020H |
VMS-4030H |
| Working table |
Metal table size (mm) |
450×280 |
500×330 |
606×466 |
| Glass table size (mm) |
306×196 |
350×250 |
450×350 |
| Travel (mm) |
220×120 |
270×170 |
370×270 |
| Dimension (mm) |
760×600×900 |
760×600×900 |
970×670×940 |
| Weight (kg) |
146 |
168 |
266 |
| Z-axis travel (mm) |
150 (Can be customized to 300mm) |
| Accessories |
1X lens tube (Standard) |
0.5X lens tube (Optional) |
Working distance (mm) |
| Zoom lens |
0.7-4.5X |
0.7-4.5X |
| Additional lens |
Magnification |
Field of view (mm) |
Magnification |
Field of view (mm) |
|
| 0.5X (Optional) |
10-64X |
22-3.4 |
5-32X |
44-6.8 |
175 |
| 1X (Standard) |
20-128X |
11.1-1.7 |
10-64X |
22-3.4 |
92 |
| 2X (Optional) |
40-256X |
5.5-0.9 |
20-128X |
11.1-1.7 |
36 |
| Brand PC (Standard), joystick (Standard) |
| Video system |
1/2” color CCD camera. Brand zoom lens (Optional) |
| Zoom lens magnification: 0.7X~4.5X. Total Magnification: 20~128X (19.5 inches display. Resolution: 1440*900) |
| Field of view: 11.1mm~1.7m |
| Power supply: AC 100-240V 50/60Hz. Power: 250W (excluding PC) |
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
Product Tags:
|
|

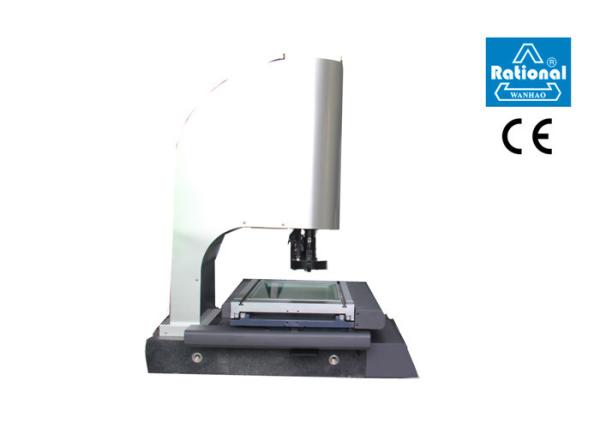

250W Visual Measurement System With Independently Developed QMS3D Software Images
|
